8-CHANNEL EMBEDDED MODULE

XE826Embedded communication

Add two CAN FD, four RS-485, and two RS-232 channels through one internal USB connection.

CAN FD up to 8 Mbit/s
4 × RS-485 + 2 × RS-232
Electrically isolated interfaces
Internal USB and four-point mounting

Request pricing

Engineering samplesVolume pricing available

Request pricing View hardware

Driver support

Windows

Linux

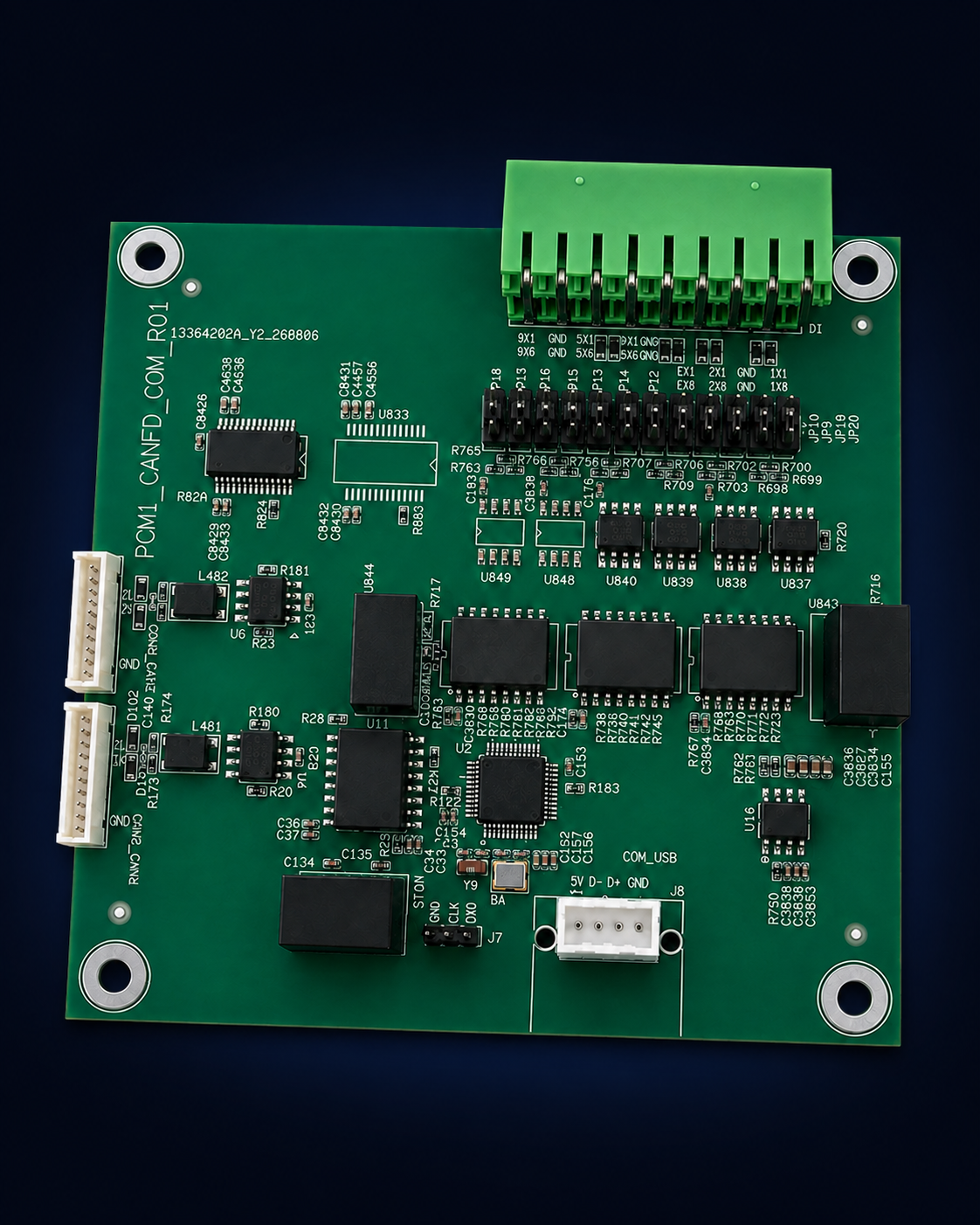

Xilume XE826 embedded 8-channel communication module with CAN, serial, internal USB, and mounting interfaces visible

8Independent interfaces

8 Mbit/sCAN FD data phase, up to

IsolatedCommunication interfaces

Windows + LinuxDrivers and host software

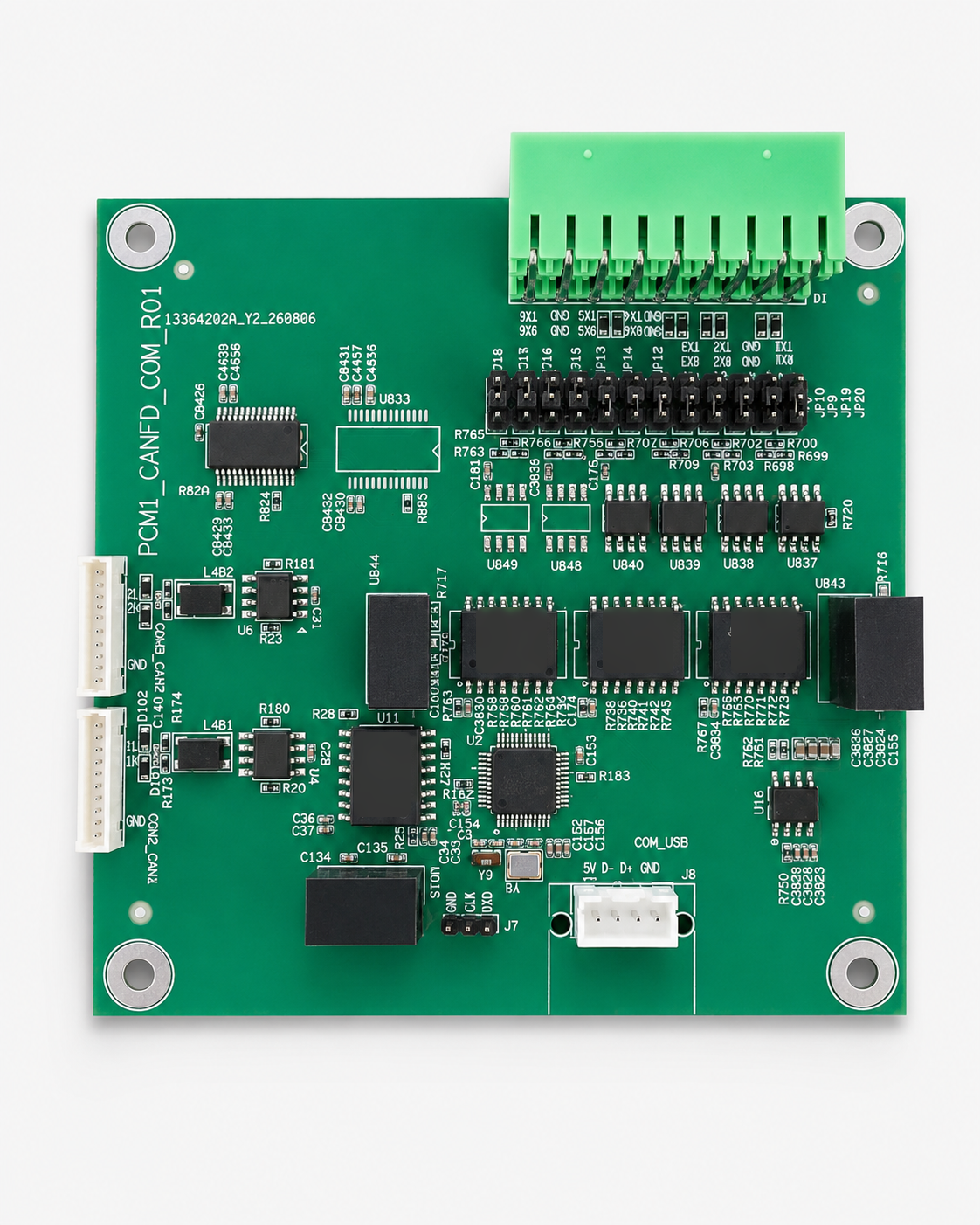

Top view of the Xilume XE826 embedded communication module — BOARD VIEWStandard interface configuration

Interface architecture

Two CAN FD and
six serial channels.

Replace a collection of external adapters with one internally mounted communication hub and one host connection.

CAN 01–02: 2 × CAN / CAN FDData phase up to 8 Mbit/s
SERIAL 01–04: 4 × RS-485Differential field serial
SERIAL 05–06: 2 × RS-232Point-to-point serial
HOST: 1 × internal USBWindows: 6 serial COM + 2 CAN FD endpoints

Standard configuration: 4 × RS-485 + 2 × RS-232.

Installation example

Internal module with
panel-accessible connections.

Xilume XE826 mounts directly inside the industrial PC. One internal USB link adds two panel-accessible CAN FD channels and six field serial channels without a stack of external adapters.

1×Internal USB host link

2×CAN FD via standard DB9

6×Serial channels via terminal

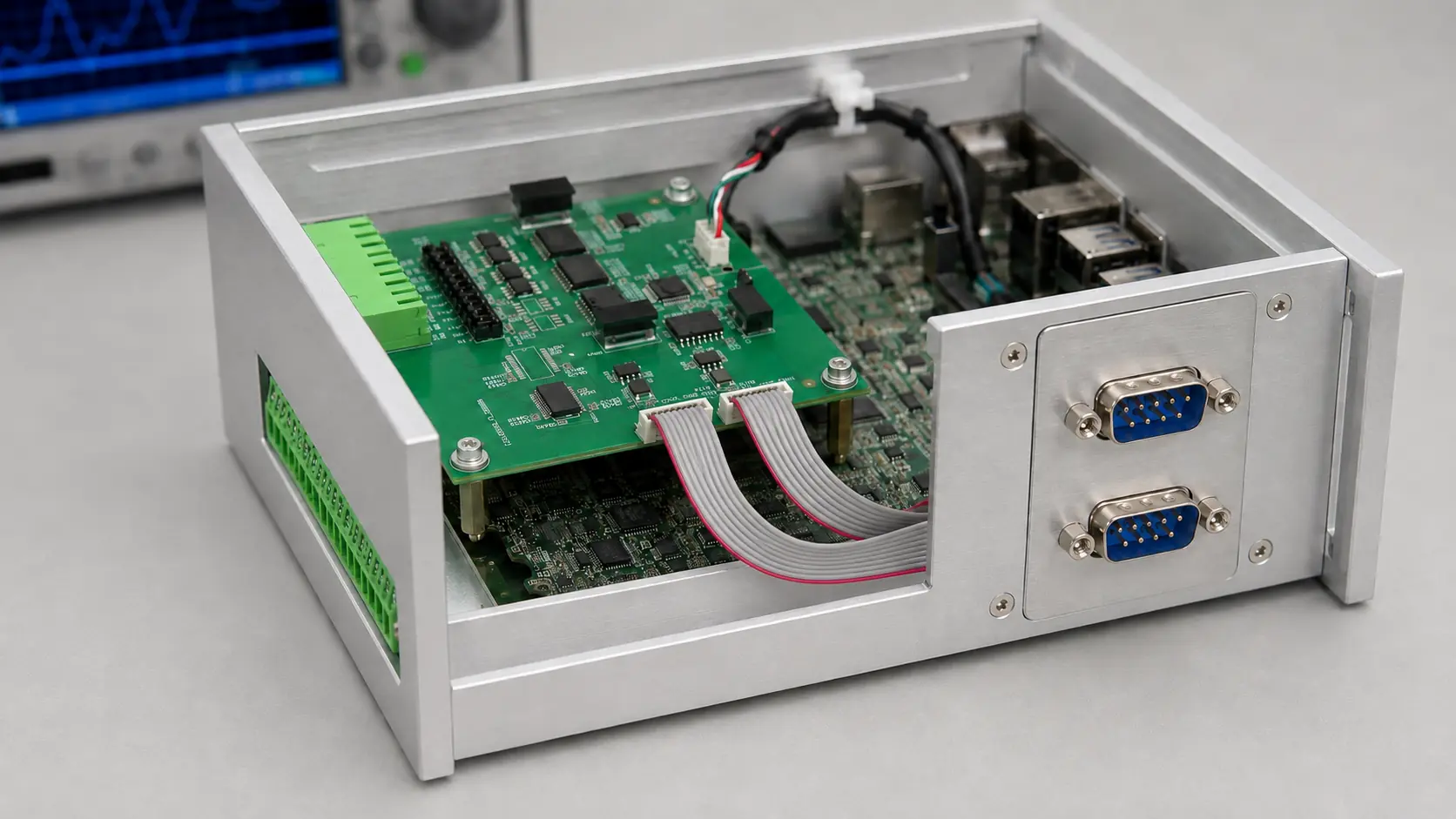

Xilume XE826 embedded communication module installed inside an industrial PC with two external DB9 connectors and an accessible 18-position serial terminal — 01 / INSTALLATION RESULT
Internal expansion with external connections

The board is secured on four standoffs. Two dedicated ribbon harnesses route CAN 01 and CAN 02 to panel-mounted DB9 connectors, while the 18-position terminal keeps all six serial channels accessible.

Close installation view of Xilume XE826 showing the internal USB harness, two CAN ribbon headers, and the serial terminal — 02 / INSTALLATION DETAIL
Mounting and cable access
Four standoffs secure the module; the USB, CAN, and serial connections remain accessible after installation.

Xilume XE826 during system commissioning with two DB9 cables and serial field wiring connected — 03 / SYSTEM COMMISSIONING
CAN FD and serial connections
Locking DB9 cables and ferruled serial wiring connect the installed module during machine commissioning.

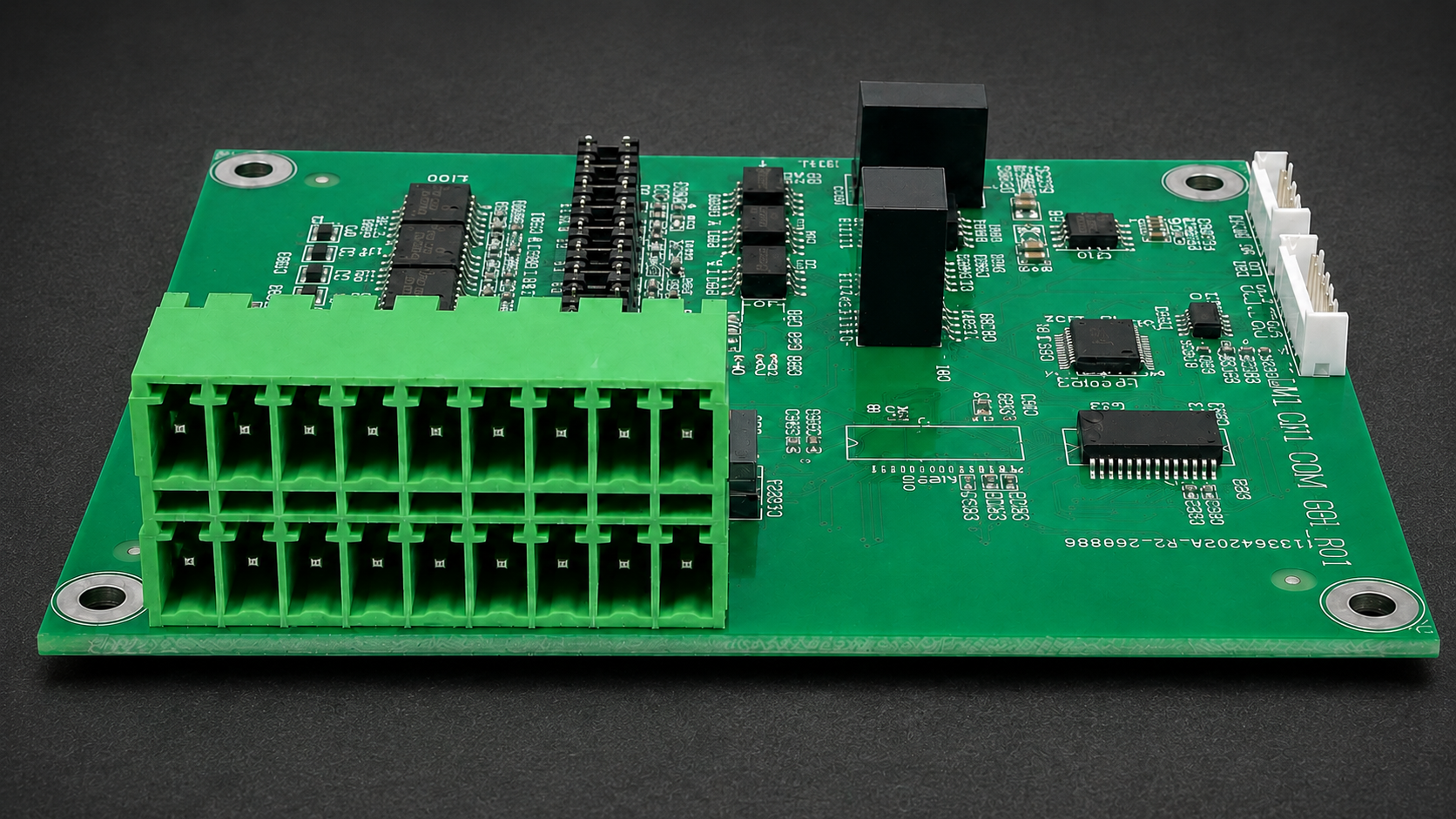

Close view of the Xilume XE826 field terminals and communication circuitry — 18-position field terminal / communication circuitry

Designed for internal integration

Internal USB host connection
with isolated field interfaces.

Electrical isolation

Electrical isolation is built into the communication interfaces for integration around field wiring.

Two high-speed CAN FD channels

CAN FD data phase up to 8 Mbit/s.

Six serial interfaces

Four RS-485 and two RS-232 ports in the standard configuration.

One internal connection

A single internal USB link presents all eight interfaces to the host.

CAN FD performance

CAN FD Control Center
configuration example

The Xilume control software shows a 500 kbit/s nominal phase and an 8 Mbit/s CAN FD data phase, with error counters at zero in this captured configuration.

Nominal rate: 500 kbit/s
Data rate: 8 Mbit/s
Mode: CAN FD with BRS

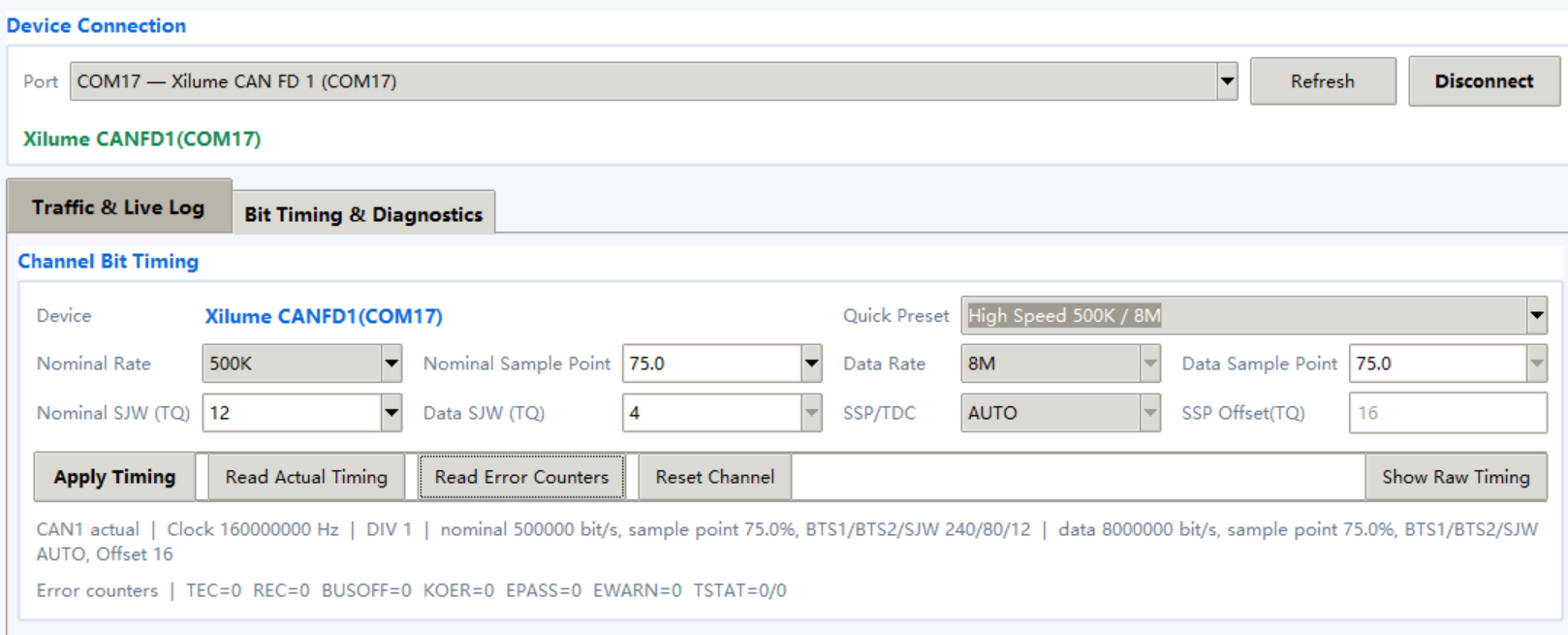

English Xilume CAN FD timing screen showing 500K nominal rate and 8M data rate

Windows and Linux support

Drivers and CAN FD software

Xilume provides Windows and Linux drivers and CAN FD Control Center. On Windows, the six serial endpoints are standard serial COM ports; the two CAN FD endpoints use Xilume CAN FD software and protocol. Get software & drivers →

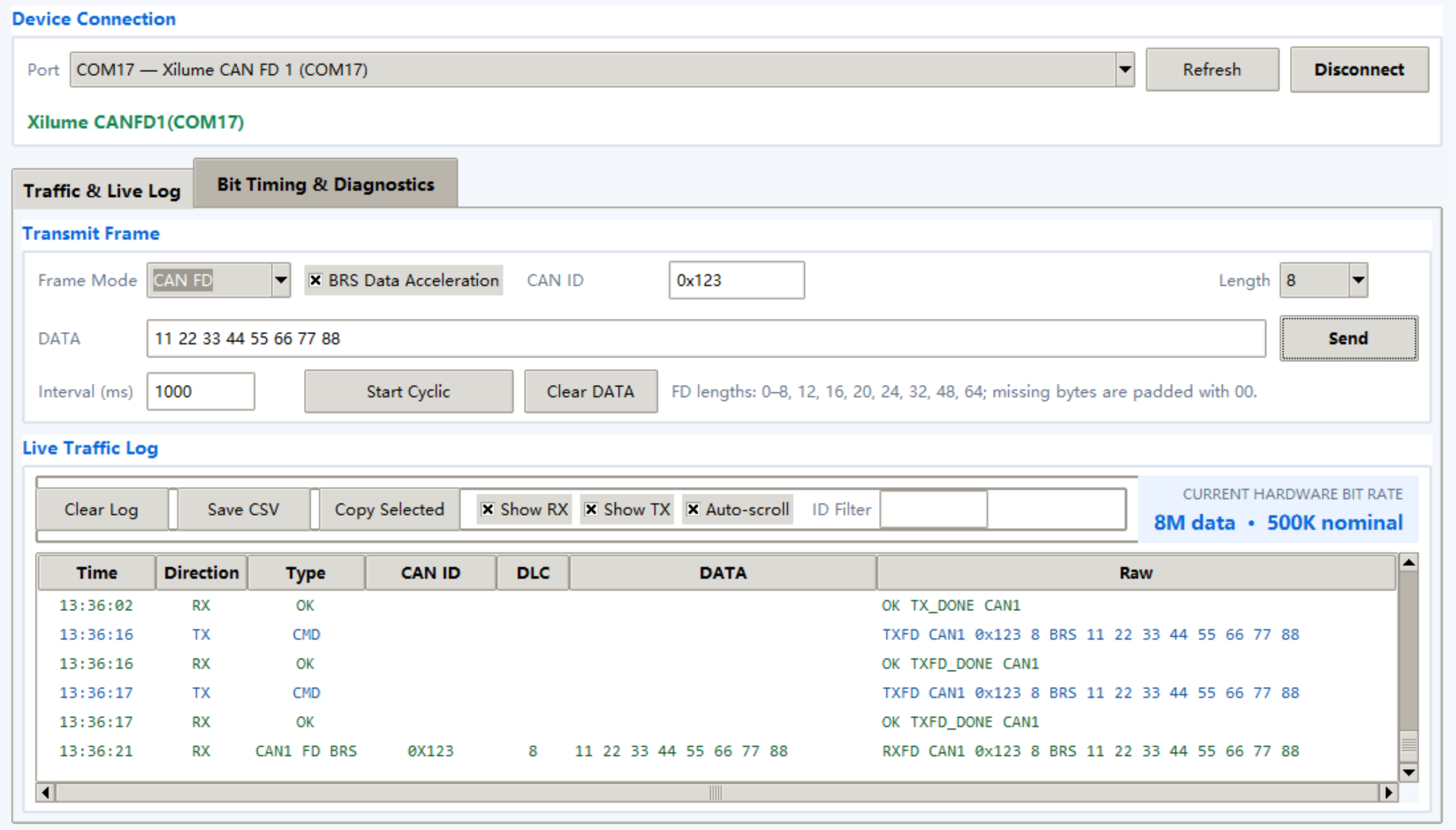

English Xilume CAN FD Control Center showing configuration and live CAN FD traffic — Configuration, transmit and receive testing, live traffic, and diagnostics

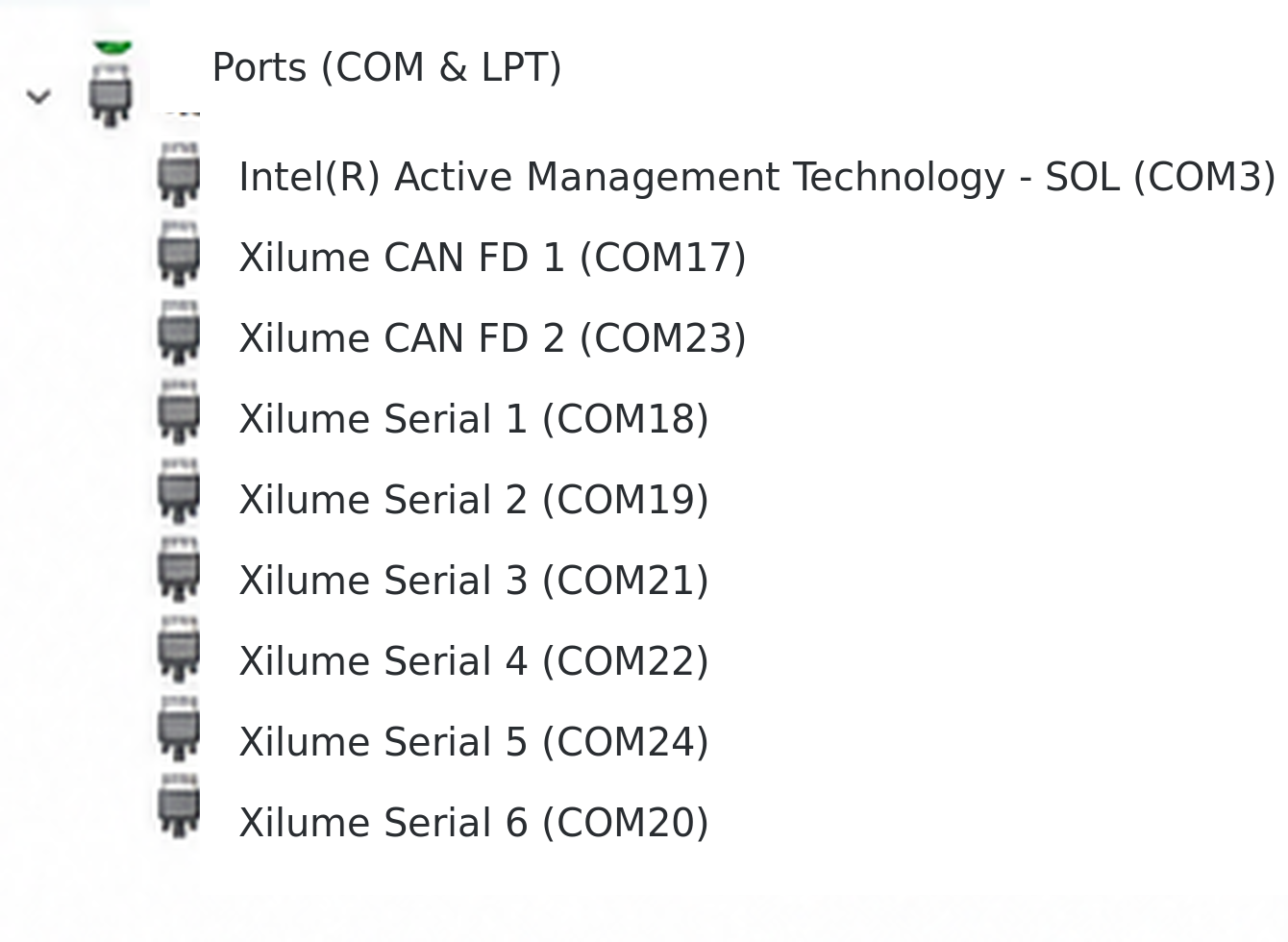

English Windows Device Manager showing Xilume CAN FD 1 and 2 plus Xilume Serial 1 through 6 with COM port numbers — Captured Windows enumeration with Xilume driver support

01Windows driver6 serial COM + 2 CAN FD endpoints

02Linux driver2 × SocketCAN + 6 serial devices

03CAN FD Control CenterConfiguration, transmit, receive, and logging

04Documentation →Installation and interface guidance

Specifications

Technical specifications

For robots, AGV/AMR platforms, industrial PCs, machine control, and embedded systems.

Ask a technical question →

Logical interfaces: 8 independent channels
CAN interfaces: 2 × CAN / CAN FD
Serial interfaces: 4 × RS-485 + 2 × RS-232, standard configuration
CAN FD performance: Data phase up to 8 Mbit/s
Host connection: One internal USB header
Electrical architecture: Electrically isolated communication interfaces
Operating systems: Windows and Linux support
Software: Windows/Linux drivers and CAN FD Control Center

Mechanical and wiring support

Check the host USB header, mounting positions, and cable routing before installation. Request the outline, hole spacing, connector pinout, and isolation ratings for the board revision in your project.

Open installation and wiring guide

Xilume XE826 · 8-Channel Embedded Module

Add eight internal communication channels through one USB connection.

Engineering samples and volume pricing are available.
