Independent channels
Keep two CAN networks separate.
ISOLATED CAN FD INTERFACE
DualCANFDMini PCIe · 2 CAN FD
Add two electrically isolated CAN/CAN FD channels to a Windows or Linux computer through a compatible Mini PCIe slot.
US$69.99
Single moduleVolume pricing available
Full-height bracket + 2 DB9 breakout cables included
Driver support
Windows
Linux
2Independent channels
8 Mbit/sCAN FD data phase
Signal isolationCAN bus paths
Windows + LinuxCOM + SocketCAN drivers
Hardware

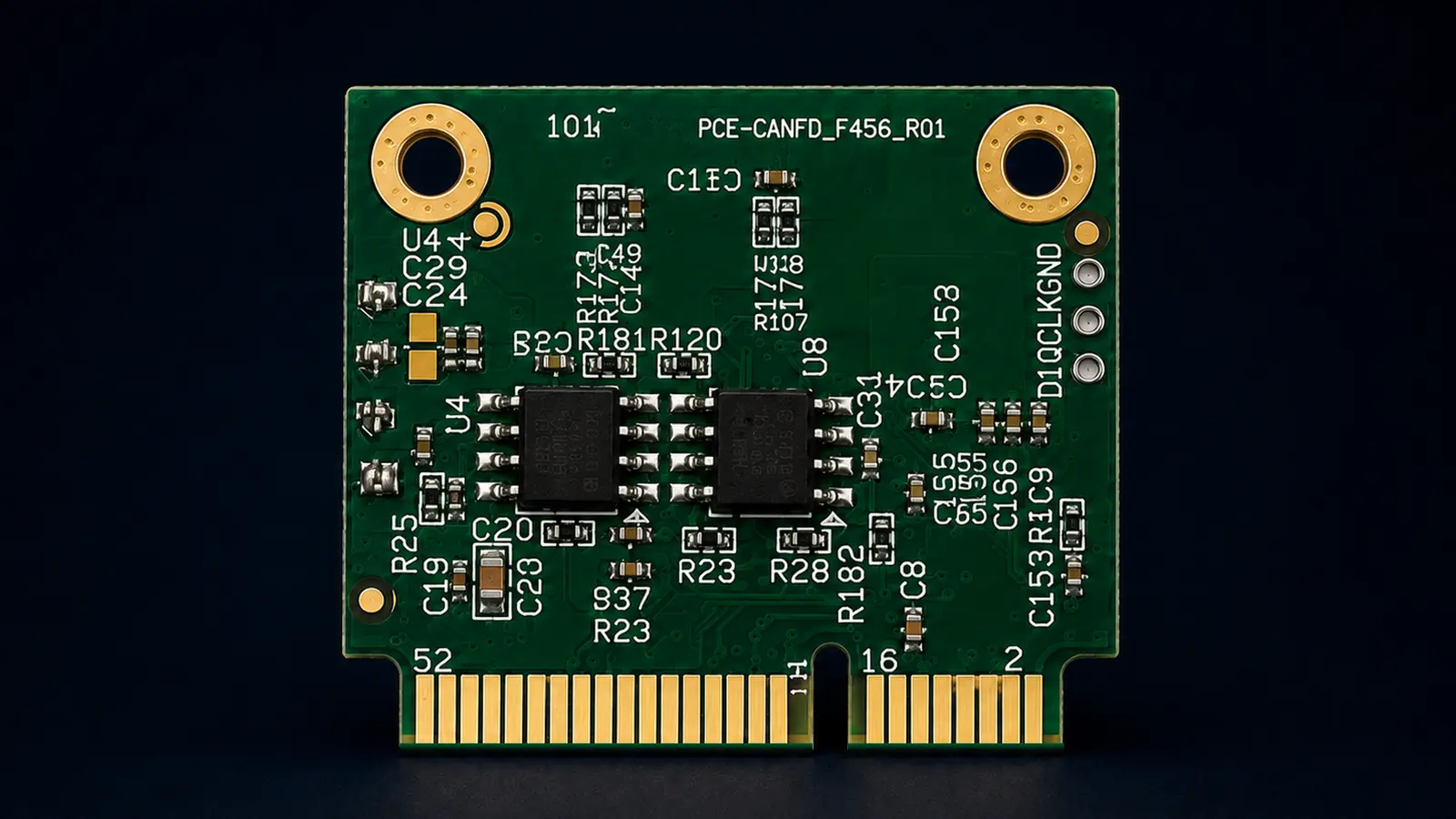

Module views
HOSTMini PCIeUSB 2.0
CHANNEL 1CAN / CAN FDIndependent
CHANNEL 2CAN / CAN FDIndependent
Embedded CAN FD
Two CAN FD channels
in one Mini PCIe slot.
CAN and CAN FD
Data phase up to 8 Mbit/s.
Internal integration
No external USB adapter box.
Signal isolation
Electrical isolation separates the host-side interface from the CAN bus signals.

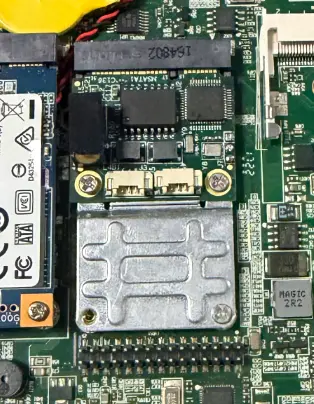

Installation example
Dual CAN FD, installed inside the industrial PC.
The module sits in a compatible Mini PCIe slot and adds two isolated CAN / CAN FD channels without an external adapter box.
- Mini PCIe
- Internal host integration
- 2 × CAN / CAN FD
- Independent channels
- Up to 8 Mbit/s
- CAN FD data phase

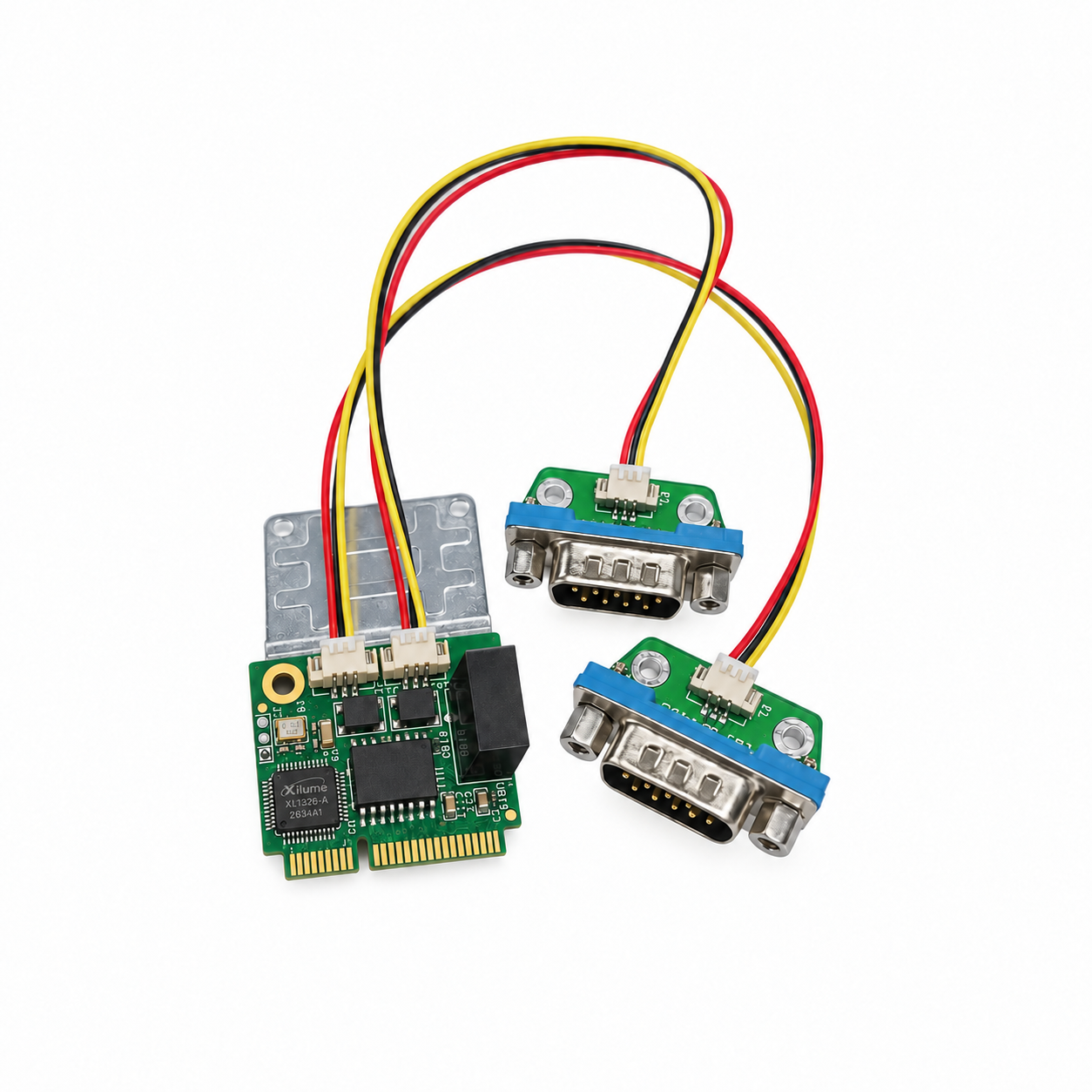

MINI PCIe CONNECTIONGold fingers seated in the host slot
Included accessories
Mounting and connections, included.
Every DualCANFD module comes with a full-height expansion bracket and two DB9 breakout cables.
- Full-height expansion bracket
- Included with the module
- DB9 breakout cables × 2
- One cable for each CAN / CAN FD channel
Windows recognition
Two named
Windows COM ports.
With the Xilume Windows driver installed, each CAN FD channel appears as a separate named COM port in Device Manager. These are CAN FD transport endpoints for Xilume software and protocol, not general-purpose serial ports.
Windows
Linux
⌄Embedded Computer
⌄Ports (COM & LPT)
Xilume CAN FD 1 (COM7)
Xilume CAN FD 2 (COM8)
Windows driver support
- CAN interfaces
- 2 independent CAN / CAN FD channels
- Maximum data bitrate
- 8 Mbit/s CAN FD data phase
- Signal isolation
- Isolated CAN signal paths
- Host data interface
- USB 2.0 through Mini PCIe
- Windows interface
- Two named COM endpoints for Xilume CAN FD transport
- Linux interface
- Two SocketCAN interfaces
- Operating systems
- Windows and Linux
- Included accessories
- Full-height expansion bracket + 2 DB9 breakout cables
Host requirement
The Mini PCIe slot must provide USB 2.0 signals.
Documentation & software
From first connection to your own application.
We provide a user manual, SDK, drivers and a getting-started README with DualCANFD.
DualCANFDIncluded support materials
- 01_User_ManualInstallation, connection and operating instructions
- 02_SDKSoftware development kit for application integration
- 03_DriversWindows and Linux drivers
- README_Start_Here.mdRead this first for the package overview and setup order
Dual Mini PCIe CAN FD
