Start with the interface problem.

From field commissioning and automotive test benches to embedded equipment and custom PCBs, choose the interfaces and hardware format your application needs.

Host connection Field interfaces Installation location Product format

What does your system need?

Begin with the sentence that matches your integration problem. Each path shows the system fit before recommending hardware.

01 · MINI PCIE HOST

Need CAN FD inside an embedded PC?

Add two isolated CAN/CAN FD channels inside a compatible industrial or embedded computer—without an external adapter.

Need CAN FD and serial ports in one machine?

Bring two CAN FD, four RS-485, and two RS-232 channels inside a robot or industrial machine through one internal connection.

Need to test equipment in the field or on an automotive bench?

Connect your laptop to CAN FD, RS-485 and RS-232 equipment with Octant to exchange test data, check communication and capture logs.

Need serial or CAN FD built into your own product?

Integrate an XL interface IC into your PCB and select the device by the required channel mix.

Recommended: XL Interface ICs

01 / SOLUTION

Embedded CAN FD Expansion

Add two isolated CAN FD networks inside the host.

For industrial and embedded computers that need permanent CAN connectivity, use the existing Mini PCIe location instead of adding an external USB adapter and enclosure.

Best fit when

Host: A compatible Mini PCIe slot provides USB 2.0 signals.
Networks: Two independent CAN or CAN FD channels are required.
Installation: The interface must stay inside an industrial or embedded computer.
Software: The system runs Windows or Linux.

System architecture

HostIndustrial or embedded PC

Internal interfaceMini PCIe + USB 2.0

Field side2 × isolated CAN FD networks

Recommended hardware

Dual Mini PCIe CAN FD

Internal module

2 × CAN FDIndependent channels

Up to 8 Mbit/sCAN FD data phase

Windows + LinuxDriver support

View product →Discuss an integration

02 / SOLUTION

CAN FD + Serial Port Expansion

Consolidate CAN FD and serial inside one machine.

For robots and industrial equipment that need several field interfaces, replace a collection of adapters with one internally mounted board and one host connection.

Best fit when

Host: An internal USB header is available inside the machine.
Networks: CAN FD, RS-485, and RS-232 must operate from one host.
Installation: The interface board mounts permanently inside a robot or industrial system.
Software: The system runs Windows or Linux.

System architecture

HostRobot controller or industrial PC

Internal interfaceOne internal USB connection

Field sideCAN FD + RS-485 + RS-232

Recommended hardware

Xilume XE826

Embedded 8-channel communication module

2 × CAN FDUp to 8 Mbit/s

6 × Serial4 RS-485 + 2 RS-232

1 × Internal USBWindows + Linux

View product →Discuss an integration

03 / SOLUTION

Octant · Field commissioning & automotive testing

Industrial interfaces for the workbench and the field.

When a computer lacks industrial ports, testing needs extra adapters. Octant brings CAN FD, RS-485 and RS-232 together in one enclosed hub, connecting a laptop or industrial PC over USB for commissioning, automotive component tests and communication troubleshooting.

Where Octant fits

Field commissioning: Connect a laptop to drives, sensors or controllers. Check traffic and communication settings, and capture intermittent problems.
Automotive bench testing: Connect CAN or CAN FD modules such as ECUs and BMS units on a test bench. Send frames according to the device protocol, observe responses and keep a traffic record.
Industrial equipment: Connect RS-485 instruments and sensors alongside RS-232 equipment. Check communication from the same computer with fewer separate adapters.

System architecture

HostLaptop or industrial PC

External USBOctant

Field sideCAN FD + RS-485 + RS-232

Recommended hardware

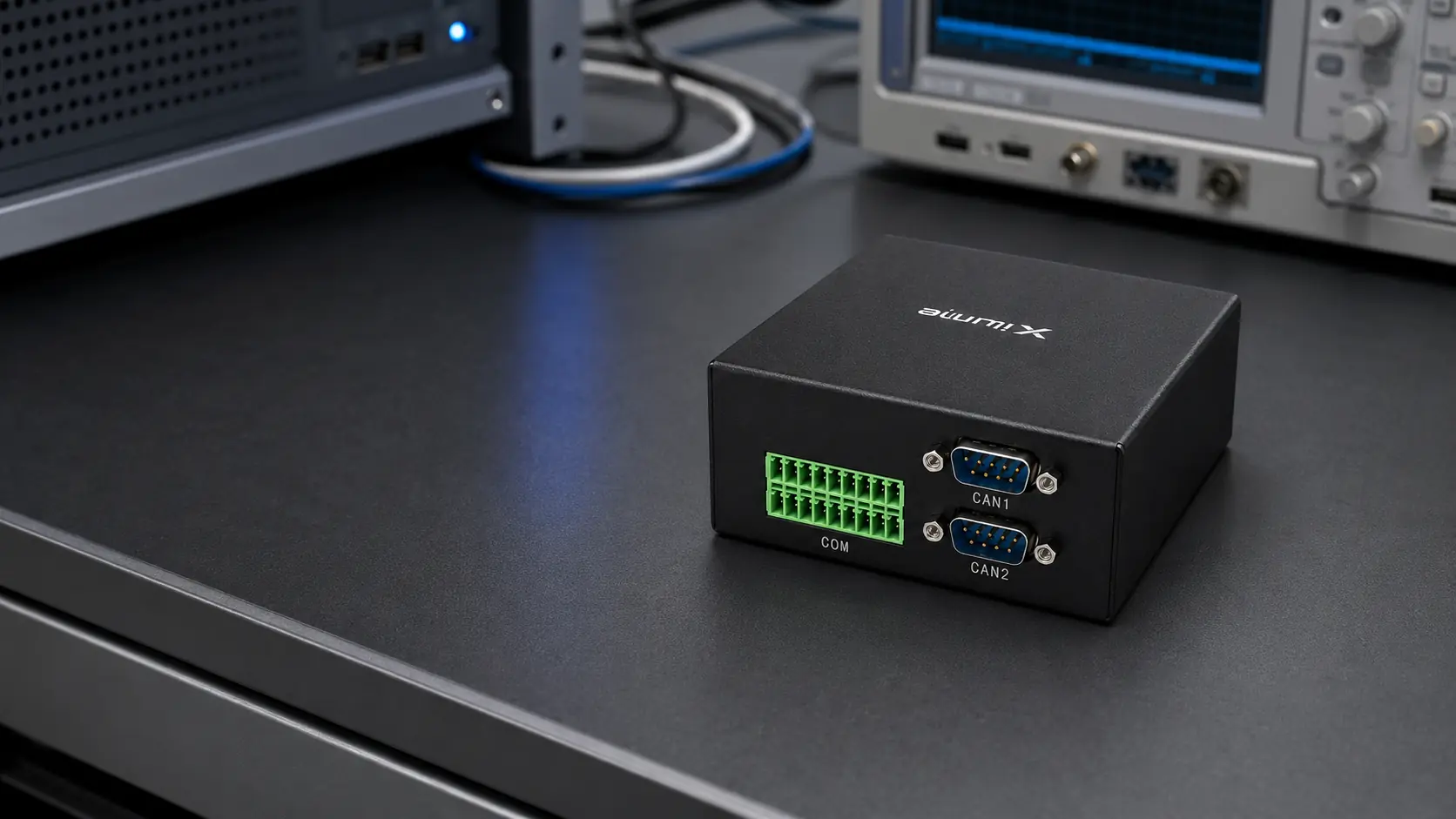

Octant

Industrial communication hub

2 × CAN FDUp to 8 Mbit/s data phase

6 × Serial4 RS-485 + 2 RS-232

Windows + LinuxHardware driver support

View Octant →Software & drivers

Software & diagnostics

CAN FD tools for testing and troubleshooting

WindowsXilume CAN FD Control Center

Single and cyclic transmission, live receive monitoring, ID filtering and CSV logs.

Windows x64TraceBox Analyzer Pro

Review traffic trends, capture data around an incident and export diagnostic reports.

04 / SOLUTION

Interface IC Integration

Build the required interfaces into your own product.

For custom PCBs, controllers, and embedded equipment, choose an XL interface IC by the required serial and CAN FD channel mix.

Best fit when

Product: A custom PCB is being designed or revised.
Interfaces: Serial, CAN FD, or both are required directly on the board.
Selection: The device is selected by interface type and channel count.
Design: Package, electrical, and support-circuit requirements are confirmed with Xilume.

Integration path

Product designCustomer PCB

Interface ICXL device selected by channel mix

InterfacesSerial, CAN FD, or both

Recommended family

XL Interface ICs

For customer PCB

Select the device by the interfaces and channel count required in the product.

XL interface IC channel comparison
Device	Serial	CAN FD
XL1326LQFP48 · 6 serial + 2 CAN FD	6 channels	2 channels
XL1108Serial	8 channels	0
XL1326-ALQFP48 · CAN FD only	0	2 channels

Contact Xilume engineering for current package, electrical, and support-circuit requirements.

View interface ICs →Discuss a product design

Not sure whether to use a module or integrate an interface IC?

Share the product type, required interface channels, host connection, and installation constraints. Xilume can confirm the right path.

Contact Xilume →
