F SERIES · CAN FD
LX32F27
Dual CAN FD controller

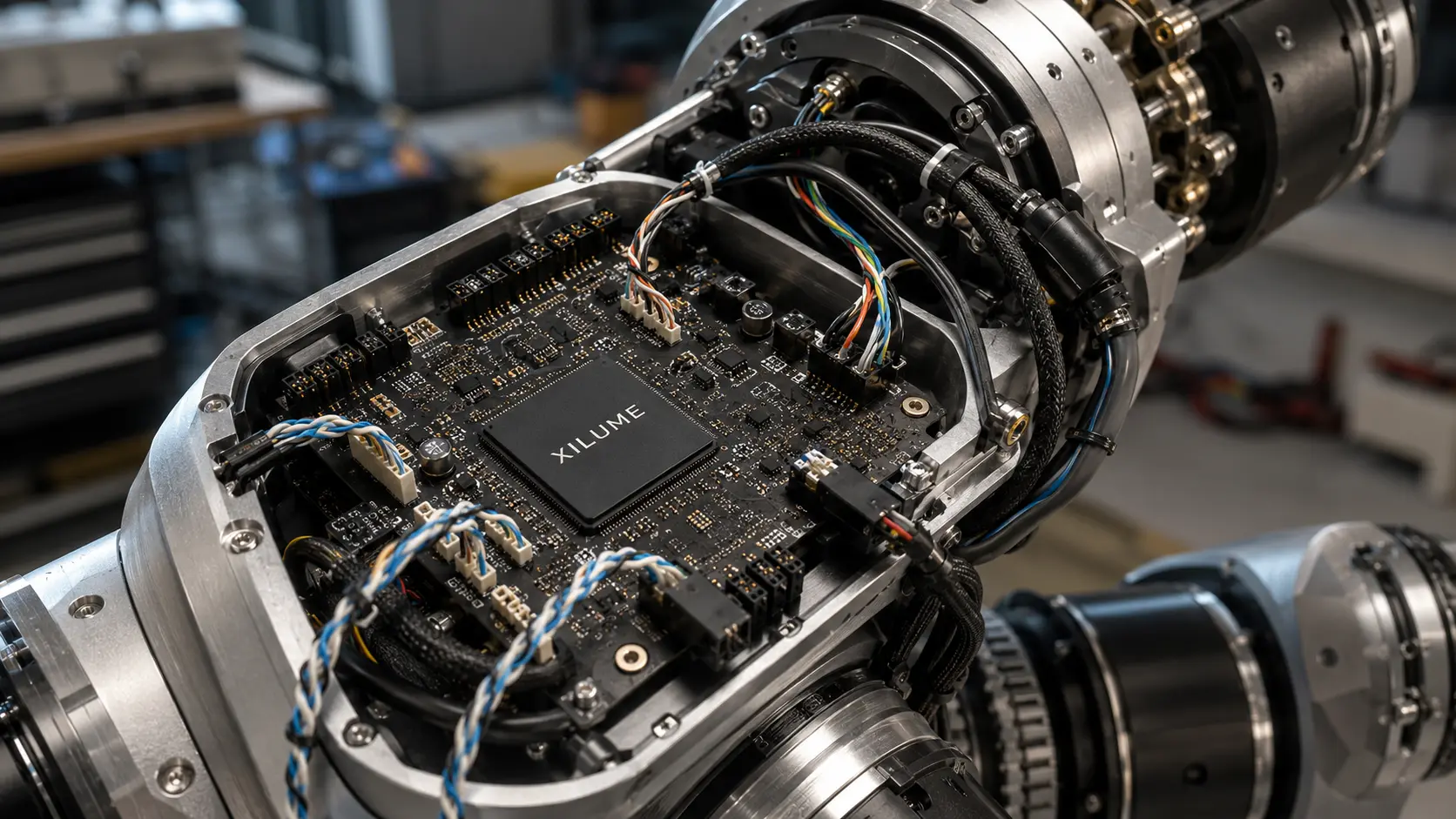

Two independent CAN and CAN FD channels for embedded computers, robotics, and industrial equipment.
NETWORKS2 × CAN / CAN FD
DATA RATEUp to 8 Mbps
HOSTUSB 2.0
SYSTEMSWindows · Linux
KEY FEATURES
Two CAN networks, one controller.
CAN FD performance
Supports CAN FD data-phase rates up to 8 Mbps.
Host integration
Pairs the controller function with Windows and Linux host drivers.
INTERFACE MAP
Designed for external CAN transceivers.
LX32F27 manages the host protocol and both CAN controllers. The customer PCB supplies two CAN FD transceivers and the required power, protection, and bus connections.
- Host side
- USB 2.0 device
- Field side
- 2 × CAN / CAN FD controller channels
- Physical layer
- 2 × external CAN FD transceivers
- Related hardware

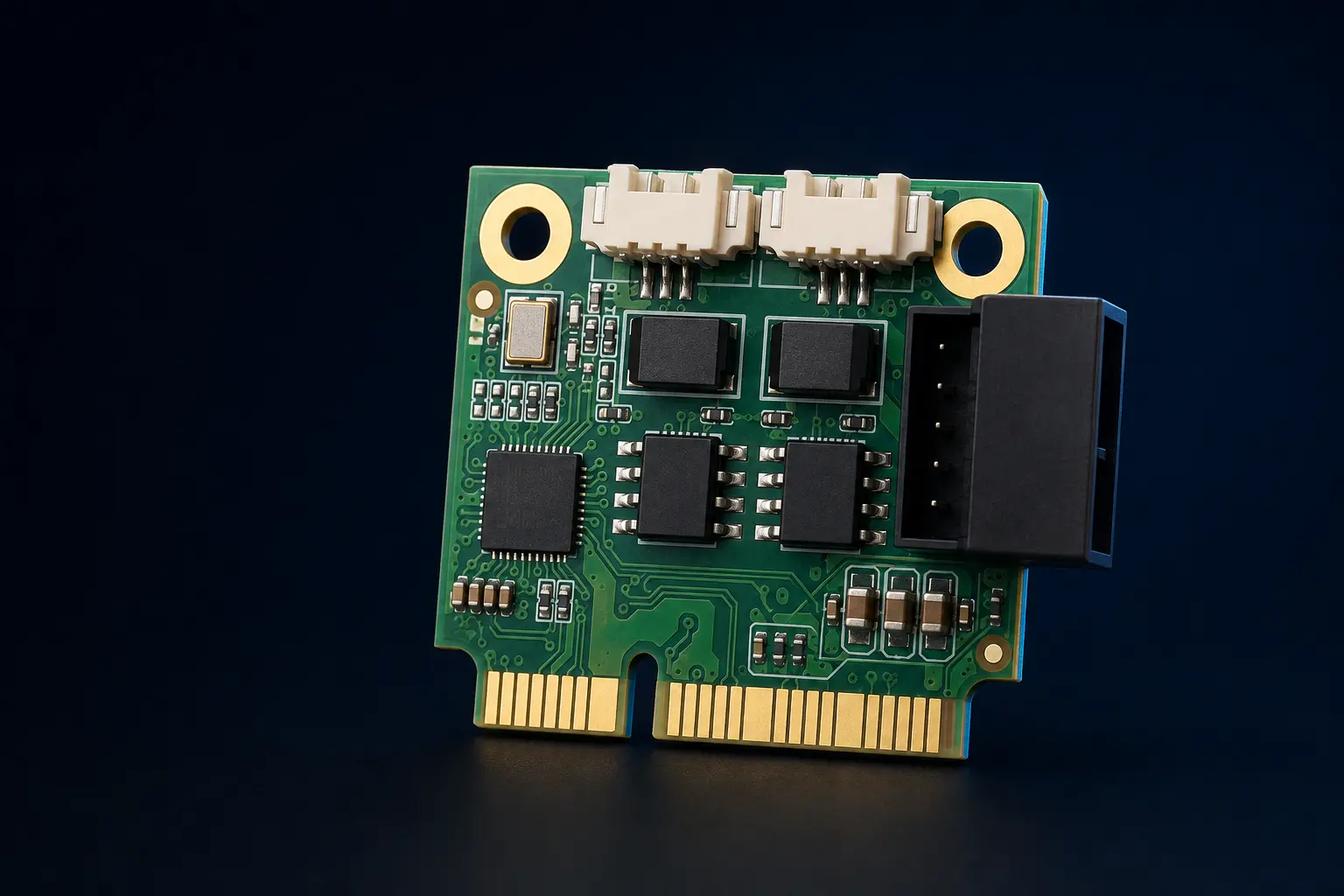

- Dual Mini PCIe CAN FD →
APPLICATIONS
Embedded CAN FD without external USB adapters.
Industrial PCs · Robotics · Vehicle networks · Test equipmentDESIGN RESOURCES
