Smart-battery access
Read supported SBS data over the battery pack's SMBus connection.
P SERIES · BATTERY + POWER
LX42P12
Smart-battery system bridge

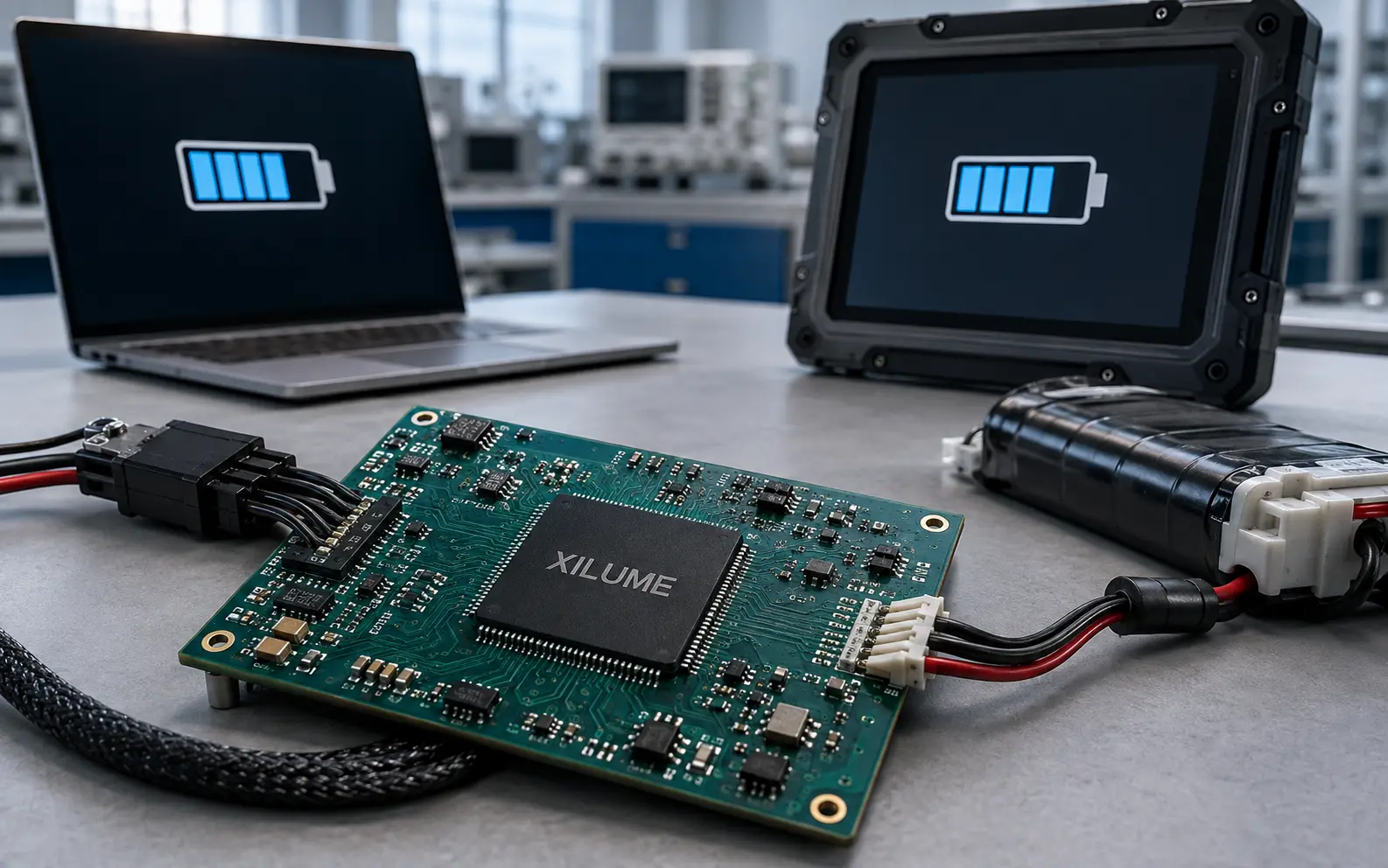

Bring supported SBS battery information into Windows, Linux, and embedded host systems.
BATTERY SIDESBS / SMBus
HOST SIDEUSB
SYSTEMSWindows · Linux
OUTPUTNative power status
KEY FEATURES
Battery information where the system expects it.
Native system status
Present battery state through Windows and Linux power interfaces.
Focused integration
Use one controller for battery communication, USB, and host reporting.
BATTERY DATA
More than a voltage reading.
Available information follows the commands supported by the connected SBS battery pack.
- Charge
- State of charge and operating status
- Electrical
- Voltage and charge/discharge current
- Capacity
- Remaining and full-charge capacity
- Runtime
- Remaining-time estimates when reported
- Diagnostics
- Temperature, cycles, and pack status
- Related hardware
- Battery Display Module →
APPLICATIONS
Power status for battery-powered equipment.
Industrial computers · Mobile robots · Instruments · Service toolsController scope
LX42P12 reads and reports supported battery information. Battery charging, protection, and power-path functions remain separate from the status interface.
DESIGN RESOURCES
Connect the pack and the host.
